Electric Articulating Boom Lift HA14JE

AC motor drive, smooth driving, great micro mobility.

High-precisoion load sensing system, less accidental false alarms and shutdowns.

Stable rotation with integrated rotary reducer, comprehensive protection.

Suitable for dust environment, zero emission, stable operation and energy saving.

Large capacity batteries, strong endurance.

Platform Capacity

230kg

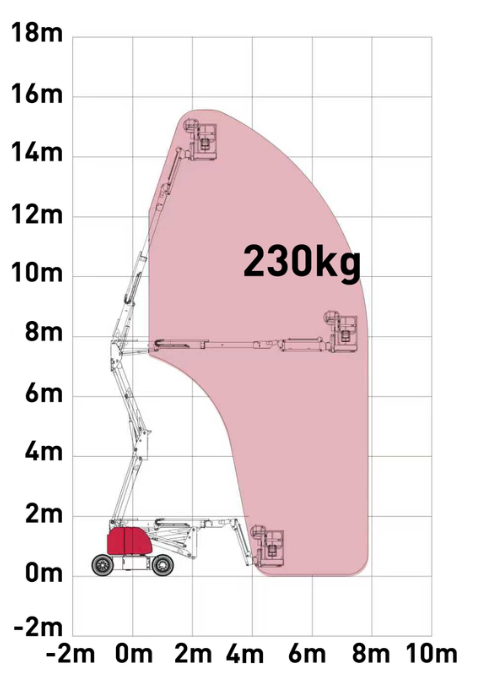

Max. Working Height

15.7m

Inquire Now

Standard Features

Model

HA14JE

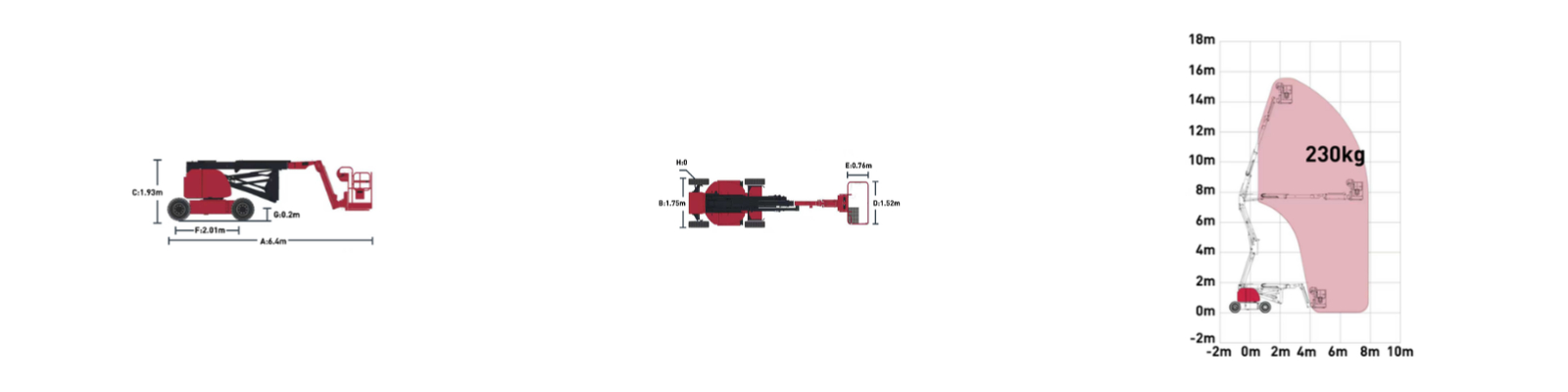

Measurements

Max. Working Height

15.7m

Platform Height

13.7m

Horizontal Reach

7.24m

Max. Up and Over

7.7m

A-Length (Stowed)

6.42m

B-Width (Stowed)

1.75m

C-Heights (Stowed)

2.01m

D-Platform Length

1.52m

E-Platform Width

0.76m

F-Wheel Base

2.01m

G-Ground Clearance

0.2m

Productivity

Platform Capacity

230kg

Drive Speed (Stowed)

5.2km/h

Gradeability (Stowed)

30%

Turning Radius (In.)

0.8m

Turning Radius (Out.)

3.8m

Turntable Rotation

355°

Platform Rotation

±90°

H-Turntable Tail Swing

0

Tilt Sensor Activation Max.

Operating Wind Speed

12.5m/s

Power

Batteries (V/Ah)

8×6V/370Ah

Charger

100-240V AC/35A

Weight

Weight

6750kg

Hydraulic Tank Capacity

20L


● Horn● Proportional Controls
● All Motion Alarm● Flashing Beacons
● Self-lock Entrance Gate● Emergency Lowering System
● Emergency Stop● Automatic Leveling Platfpgm
● Seif—diagnostis● Load Sensing System

Options & Accessories

● AC Power to the Platform

● Air Tube to the Platform


Electric Articulating Boom Lift H1A4JE
