Order Picker OPT0408E

The Order Picker features a compact, lightweight design that significantly boosts operational efficiency.

As a versatile solution, the electric vertical lift easily accesses work areas. Hered offers a range of Order

Pickers specifically engineered to meet diverse customer needs. These vertical scissor lifts deliver

efficient operation and straightforward installation, making them ideal for warehousing, order picking,

transportation, inventory management, and routine maintenance.

Platform Capacity

135kg

Max. Working Height

5.85m

Inquire Now Pdf Download

FEATURED PRODUCTS

● Oil-free picking vehicle, pure electricity, zero emission, energy-saving and environmentally friendly.

● Equipped with a multi-level cargo platform to meet material transportation needs.

● Simple layout and easy maintenance and service.

● The two sides of the rotating tray are convenient

for maintenance services.

● High precison platform overload sensing system

reduces accidental false alarms and shutdowns.

PRODUCT PARAMETERS

Configurations Standard

Platform Self-locking Door Automatic Pit Protection

Automatic Braking System Action Buzzer

Emergency Descent System Full Height Travel

Emergency Stop Button Work Strobe Light

Load Sensing System AC Power to Platform

Fault Diagnosis System Single Extension Platform

Tilt Protection System Charging Protection System

Standard Transport Forklift Holes Horn

GPS

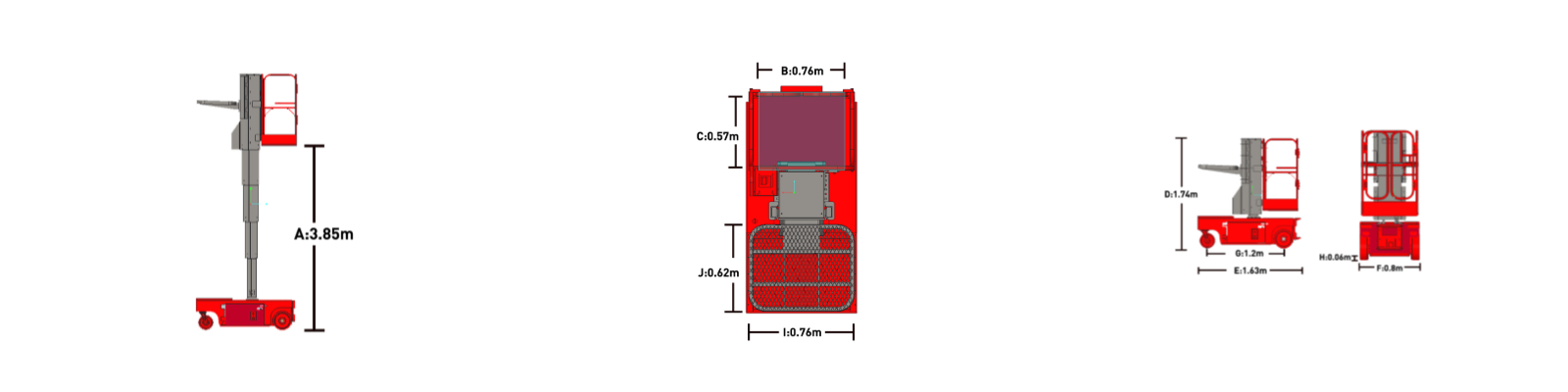

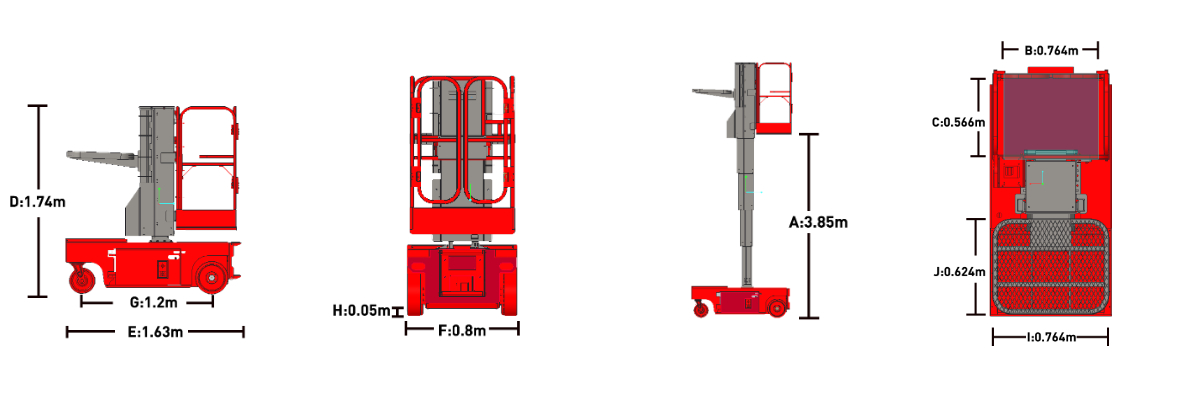

MODEL	OPT0408E
Max.Working Height	5.85m
A-Max. Platform Height(In/out)	3.85m
B-Length Of Manned Platform	0.76m
C-Width Of Manned Platform	0.57m
D-Heights	1.74m
E-Length	1.63m
F-Overall Width	0.8m
G-Wheel Base	1.2m
H-Clearance	0.06m
I-Pallet Length	0.76m
J-Pallet Width	0.62m
PERFORMANCE
Minimum Turning Radius (inner wheel/outer wheel)	0m/1.45m
Manned Platform	135kg
Cargo Pallet	90kg
Cargo Deck	115kg
Max. Occupancy	1
Gradeability	15%
DRIVE SPEED
Folding State Speed	3.5km/h
Lifting Speed	0.6km/h
Ascent/Descent Speed	23/23s
POWER
Batteries(V/Ah)	24V/100Ah
Charger	100-240VAC/6.3A
Drive Motor	2x24V/0.5kW
Lift Motor	24V/1.4kW
WEIGHT
Weight	1020kg
TIRE
Front Wheel	Ф254x62mm
Rear Wheel	Ф305x100mm
