15.7 meters 230kg Electric Articulating Boom Lift HA16JE

Electric Articulating Boom Lift HA16JE&HA16RJE

Articulating boom lifts provide the ability to lift up, over and out with precise positioning for ultimate versatility in hard-to-access work areas. With a towering height of 15.7 meters, this 15.7 meters electric articulating boom lift provides unparalleled access to high ceilings, rooftops, and other challenging areas. Equipped with advanced technology and sturdy construction, the 15.7 meters Electric Boom Lift from Hered ensures a stable and secure aerial platform for various industries such as construction, maintenance, and facilities management.

Platform Capacity

230kg

Max. Working Height

17.7m

Inquire Now Pdf Download

FEATURED PRODUCTS

● AC motor drive, smooth driving, better micro mobility.

● High-precision overload sensing system to reduce accidental and false alarm shutdown.

● Smoother slew ensured by integrated slewing reducer; comprehensive protections suitable for dusty environments.

● Smoother actions and more energy saving thanks to zero-emission devices

● Large capacity battery with strong endurance.

PRODUCT PARAMETERS

Configurations

-------------------

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Self-lock Gate

Emergency Descent System

Anti-extrusion device

Emergency Stop

Optional

-----------

AC Power to the Platform

Air Pipe to the Platform

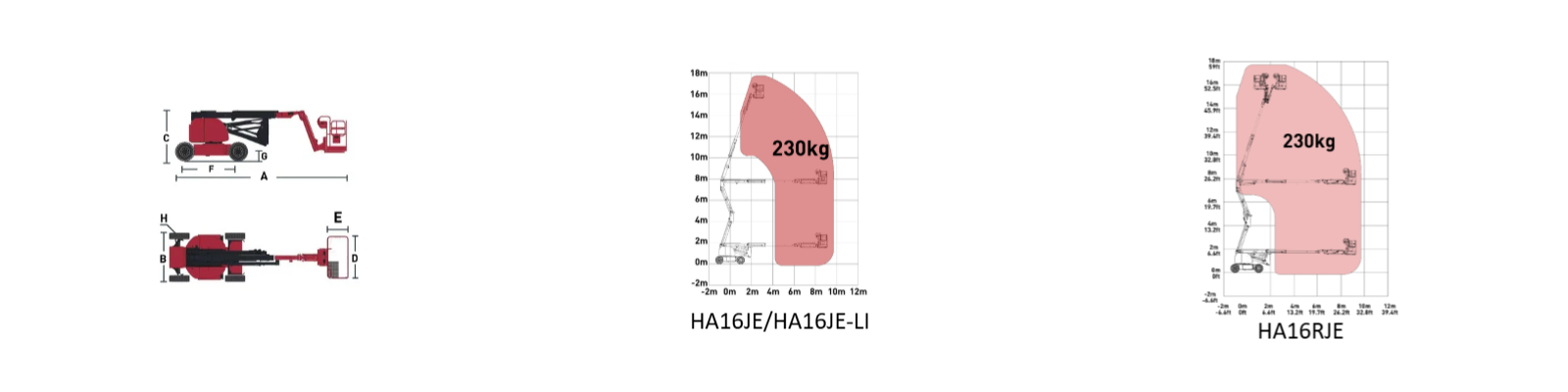

MODEL	HA16JE	HA16JE-Li	HA16RJE

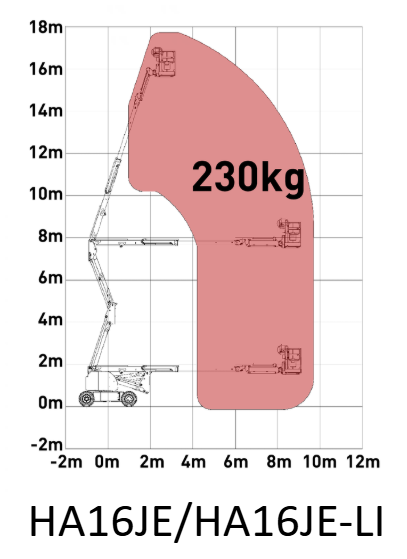

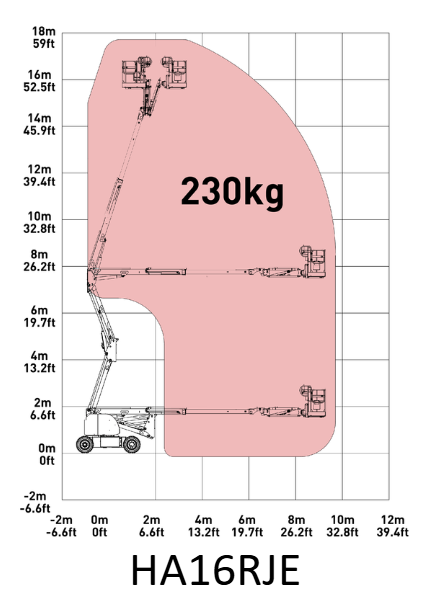

Max.Working Height	17.7m	17.7m	17.7m
Max. Platform Height	15.7m	15.7m	15.7m
Max. Horizontal Extension	9.13m	9.05m	9.23m
Max.Up and Over Height	7.6m	7.63m	7.6m

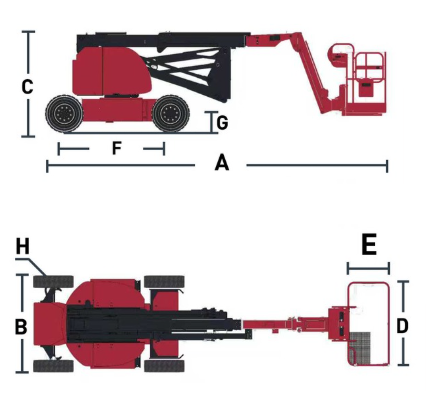

A- Length (Stowed)	6.98m	6.86m	6.98m
B- Width (Stowed)	1.95m	1.95m	1.95m
C- Height (Stowed)	1.96m	2m	1.96m
D- Platform Length	1.52m	1.8m	1.52m
E- Platform Width	0.76m	0.76m	0.76m
F- Wheelbase	2.01m	2.01m	2.01m
G- Ground Clearance	0.23m	0.23m	0.23m
PERFORMANCE
Platform Capacity	230kg	230kg	230kg
Max.Drive Speed (Stowed)	4.8km/h	4.8km/h	4.8km/h
Gradeability	30%	30%	30%
Turning Radius(In.)	0.8m	0.8m	0.8m
Turning Radius(Out.)	3.8m	3.8m	355°
Turntable Rotation	355°	355°	355°Non-Continuous
Vertical JIB rotation	/	/	±80°
Platform Rotation	±80°	±80°	±85°
H- Turntable Tailswing	0.06m	0.15m	0.06m
Tilt Rating	4.5°	4.5°	4.5°
Operating Wind Speed	12.5m/s	12.5m/s	12.5m/s
Lift Motor	5kw	5kw	5kw
Drive Motor	5kw	5kw	5kw
POWER
Batteries(V/Ah)	48V/310Ah	51.2V/280Ah	51.2V/280Ah
Charger	100-240VAC/13.5A	100-240VAC/13.5A	100-240VAC/13.5A
Tires	705X210X445	705X210X445	705x210x445
WEIGHT
Weight	7850kg	7950kg	7850kg
