Electric Articulating Boom Lift HA21JE

The HERED HA21JE Electric Articulating Boom Lift has a maximum working platform height of 22.55m and a maximum load capacity of 250 KG.

Platform Capacity

250kg

Max. Working Height

22.55m

PRODUCT HIGHLIGHTS

1. High-precision overload sensing system to reduce accidental and false alarm shutdown;

2. Integrated rotary reducer makes smooth turning, comprehensive protection can adapt to dust environment;

3. Large capacity batteries, strong endurance;

4. Green and environmentally friendly, low noise, zero emissions;

5. Precise and efficient AC drive system, with strong power and stable control;

6. Fully electric proportional control, the boom can perform composite movements, which is smooth and efficient, and the weight of the boom is reduced, saving energy and consumption;

7. Human-computer interaction interface and fault self-diagnosis system;

8. Floating bridge design, high passability and off-road capability.

PRODUCT PARAMETERS

Standard configuration:

1. Horn;

2. Proportional Controls;

3. Motion Alarm;

4. Flashing Beacons;

5. Self-lock Gate;

6. Emergency Descent System;

7. Emergency Stop System;

8. Automatic Leveling Platform;

9. Fault Diagnosis System;

10. Overload Sensing System;

11. Tilt Protection System;

12. Oscillating axle;

13. Color Display.


Optional configuration:

1. AC Power to the Platform;

2. Air Pipe to the Platform;

3. GPS.


ModelsHA21JE

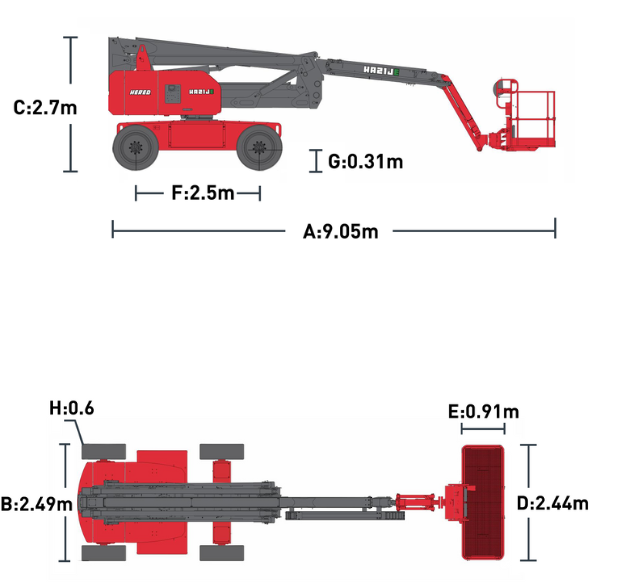

Measurements
Max. Working Height22.55m
Max. Platform Height20.55m
Max. Horizontal Extension12.5m
Max.Up and Over Height8.9m
A- Length (Stowed)9.05m
B- Width (Stowed)2.49m
C- Height (Stowed)2.7m
D- Platform Length2.4m
E- Platform Width0.9m
F- Wheelbase2.5m
G- Ground Clearance0.31m
Performance
Platform Capacity250Kg
Max.Drive Speed (Stowed)4.8km/h
Max.Gradeability (Stowed)45%
Turning Radius (In.)2.42m
Turning Radius (Out.)5.57m
Turntable Rotation360° Continuous
Platform Rotation±80°
H- Turntable Tailswing0.6
Tilt Rating
Operating Wind Speed12.5m/s
Power
①Batteries(V/Ah) / ②Engine①8x6v/420Ah
①Charge / ②Power①48V/60A
Tires
Tires36x14-20
Weight
Hydraulic Tank Capacity70L
Weight11000kg
