Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, scissor lifts provide excellent capacity and large platform workspace.
Platform Capacity
230kg
Max. Working Platform Height
9.9m
PRODUCT HIGHLIGHTS
l Easily passes through standard doors and can access elevators
l Automatic pothole protection system, more safe and reliable
l Automatic display of fault code for easy maintenance
l Unidirectional extension platform for enlarge working range and can quickly reach the operation point
l Battery drive, equipped with batteries and hydraulic system maintenance-free, more waterproof, more efficient and safer
PRODUCT PARAMETERS
Models | HS0808E |

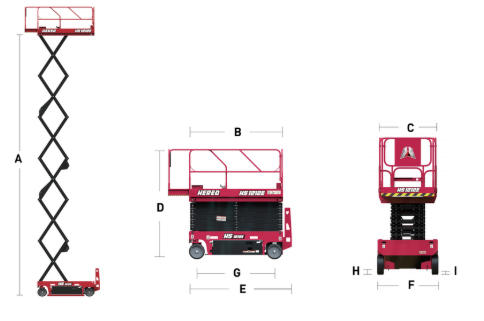

Measurements | |
Max. Working Height | 9.9m |
A-Max. Platform Height | 7.9m |
B-Platform Length | 2.26m |
C-Platform Width | 0.81m |
Extension Size | 0.90m |
D-Heights (Rails Up) | 2.27m |
Height (Rails Down) | 1.96m |
E-Length (with Ladder) | 2.47m |
F-Overall Width | 0.81m |
G-Wheel Base | 1.85m |
H-Clearance (Stowed) | 0.10m |
I-Clearance (Raised) | 0.02m |
Performance | |
Platform Capacity | 230Kg |
Extension Capacity | 113Kg |
Max. Occupancy | 2 |
Drive Speed (Stowed) | 3.5Km/h |
Drive Speed (Raised) | 0.8Km/h |
Turning Radius (In.) | 0m |
Turning Radius (Out.) | 2.1m |
Up/Down Time | 31/40s |
Gradeability | 25% |
Max. Slope | 1.5°/3° |
Control | Proportional |
Drive | FWD |
Multi Disc Brake | Front |
Tires (mm) | 381x127 |
Power | |
Batteries (V/Ah) | 4x6/225 |
Charger | 100-240VAC/30A |
Weight | |
Weight | 2180Kg |
