Hydraulic Scissor Lift HS0507H
Hydraulic Scissor Lift HS0507H
Hydraulic Scissor Lift HS0507H
Hydraulic Scissor Lift HS0507H

Hydraulic Scissor Lift HS0507H

Hydraulic Mobile Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, scissor lifts provide excellent capacity and large platform workspace. Expand your horizons with the unidirectional extension aerial platform. Enlarge your working range without sacrificing stability or safety. Tackle tasks that were once out of reach with newfound versatility.

Platform Capacity

230kg

Max. Working Height

6.5m

Inquire Now
FEATURED PRODUCTS

HIGHLIGHTS

Optimized matching, high cycle times, better endurance.

Precise control greatly improves the smoothness of operating.

Large ground clearance, stronger passability


Low Maintenance Cost

Universal and modular design, easy maintenance.

Swing out trays of batteries and hydraulic system.

More durable, stable and safe.


PRODUCT PARAMETERS

Configurations Standard

Folding Guardrails

Platform Self-lock Door

Safety Arm

Emergency Stop

Charging Protection

Emergency Descent

Hour Meter

Pothole Protector

Proportional Control

Flashing Beacon

Automatic Braking System

Tilt Sensor

Self-diagnosis

Forklift Hole

Full Height Drive

Extension Platform

Motion Alarm

Horn


Optional

Load Sensing System

AC Power to the Platform

Air Pipe to the Platform


MODELHS0507H
Max. Working Height(In/out)6.5m/0m

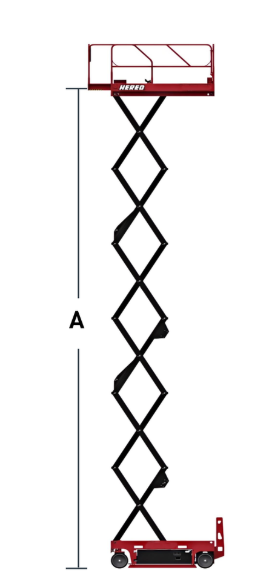

A-Max. Platform Height(In/out)4.5m/0m

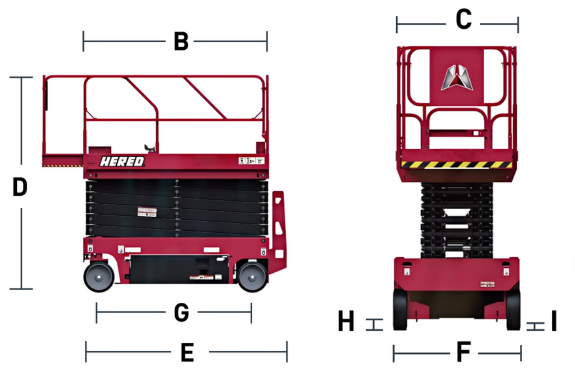

B-Platform Length1.35m
C-Platform Width0.7m
Extension Size0.6m
D-Heights (Rails Up)2.1m
Height (Rails Down)1.74m
E-Length (with Ladder)1.60m
F-Overall Width0.76m
G-Wheel Base1.17m
H-Clearance (Stowed)0.05m
I-Clearance (Raised)0.02m
PERFORMANCE
Platform Capacity230kg
Extension Capacity113kg
Max. Occupancy(in/out)2/0
Max.Drive Speed (Stowed)3.5km/h
Drive Speed (Raised)0.8km/h
Turning Radius (Out.)1.60m
Up/Down Time25/20s
Gradeability0.25
Max. Slope1.5°/3°
Controlswitch
DriveFWD
Multi Disc BrakeRear
Tires (mm)305mmX100mm
Max.Wind Speed0m/s
POWER
Batteries (V/Ah)100-240VAC/6.3A
Lithium battery
Charger100-240VAC/10A
WEIGHT
Weight995kg
