Electric Telescopic Boom Lift HT16JE
16.2 meters 300kg Electric Telescopic Boom Lift
Electric Telescopic Boom Lift

New Model Electric Telescopic Boom Lift HT18JE

The HERED HT18JE electric telescopic boom lift has a maximum working platform height of 18.6 meters and a maximum load capacity of 320kg. Extendable booms provide industry-leading working heights, empowering you to tackle even the most difficult tasks with ease. Zero emissions and low noise contribute to a cleaner, quieter work environment.

Platform Capacity

320kg

Max. Working Height

20.6m

Inquire Now
FEATURED PRODUCTS

● Environmental friendliness, low noise, zero emission, and maintenance-free large-capacity lithium batteries.

● Precise and efficient AC drive system for strong power and smooth control.

● Smooth and efficient compound boom actions from fully electric proportional control; possible boom lowering with its own weight for energy saving and reduced consumption.

● Human-machine interaction interface and fault self-diagnosis system.

● High gradeability and off-road capability as a result of floating bridge design.


PRODUCT PARAMETERS

FEATURES Standard

---------------

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Tilt Protection System

Self-lock Gate

Oscillating axle

Emergency Descent System

Color Display

Anti-extrusion device

Emergency Stop System


Optional

-------------

AC Power to the Platform

Air Pipe to the Platform

MODELHT18JE
Max.Working Height20.6m
Max. Platform Height18.6m
Max. Horizontal Extension12.58m

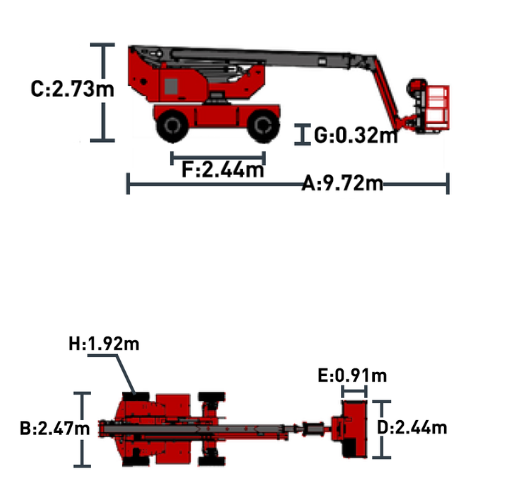

A-Length (Stowed)9.72m
B-Width (Stowed)2.47m
C-Heights (Stowed)2.73m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase2.44m
G- Ground Clearance0.32m
Wheel track2.2m
PERFORMANCE
Platform Capacity320kg
Max.Drive Speed4.8km/h&0.6km/h
Gradeability40%
Turning Radius(In.)3.28m
Turning Radius(Out.)6.5m
Turntable Rotation360°Continuous
Platform Rotation±90°
Tilt Rating5°
Operating Wind Speed12.5m/s
Tail Swing1.92m
Hydraulic Tank Capacity75L
Auxiliary power12V DC
Lift Motor3.3kw
Drive Motor3.3kw
POWER
Batteries(V/Ah)48V304Ah
Charger100-240VAC/16A
Tires33X12-20
WEIGHT
Weight8850kg
