c Telescopic Boom Lift

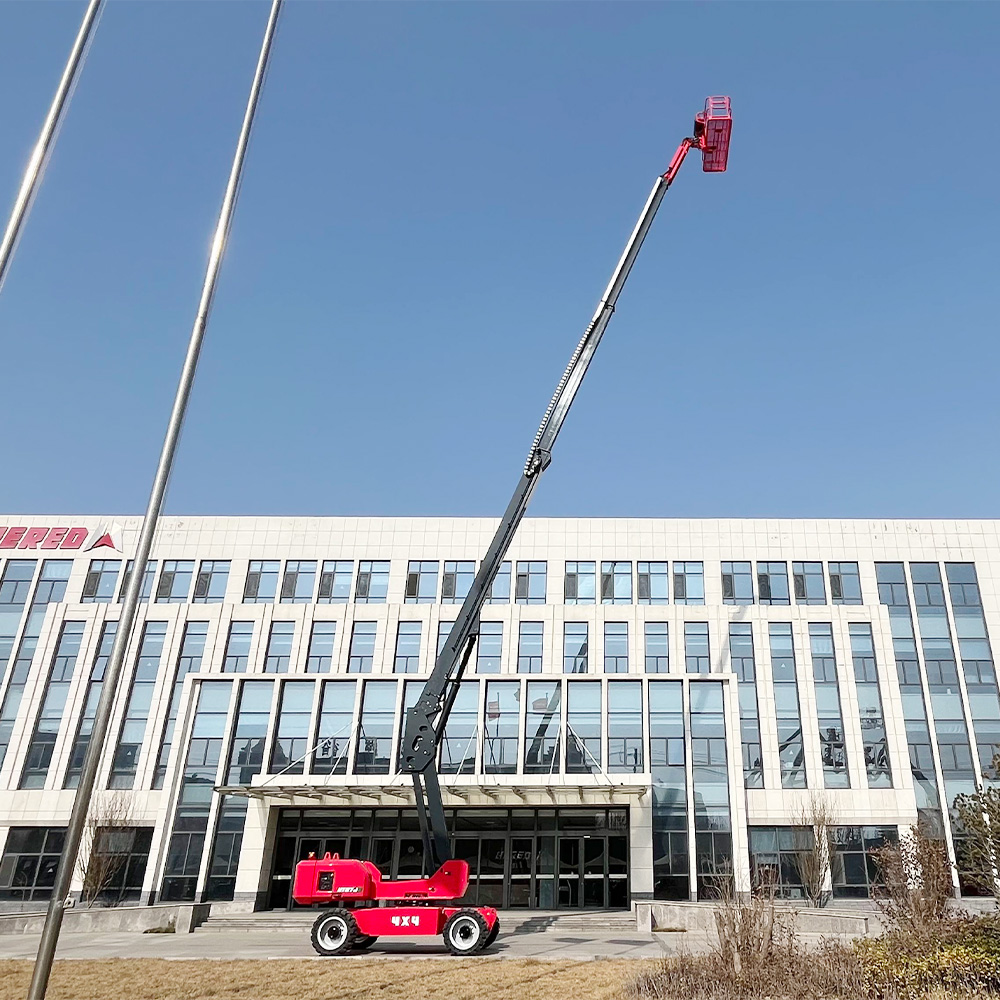

Electric Telescopic Boom Lift HT27JE
28.9 meters 300kg Electric Telescopic Boom Lift

New Model Electric Telescopic Boom Lift HT27JE

The HERED HT27JE electric telescopic boom lift has a maximum working platform height of 28.9 meters and a maximum load capacity of 450kg. Extendable booms provide industry-leading working heights, empowering you to tackle even the most difficult tasks with ease. Zero emissions and low noise contribute to a cleaner, quieter work environment.

Platform Capacity

300kg/450kg

Max. Working Height

28.9m

Inquire Now Pdf Download
FEATURED PRODUCTS

● Environmental friendliness, low noise, zero emission, and maintenance-free large-capacity lithium batteries.

● Precise and efficient AC drive system for strong power and smooth control.

● Smooth and efficient compound boom actions from fully electric proportional control; possible boom lowering with its own weight for energy saving and reduced consumption.

● Human-machine interaction interface and fault self-diagnosis system.

● High gradeability and off-road capability as a result of floating bridge design.


PRODUCT PARAMETERS

FEATURES Standard

---------------

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Tilt Protection System

Self-lock Gate

Oscillating axle

Emergency Descent System

Color Display

Anti-extrusion device

Emergency Stop System


Optional

-------------

AC Power to the Platform

Air Pipe to the Platform

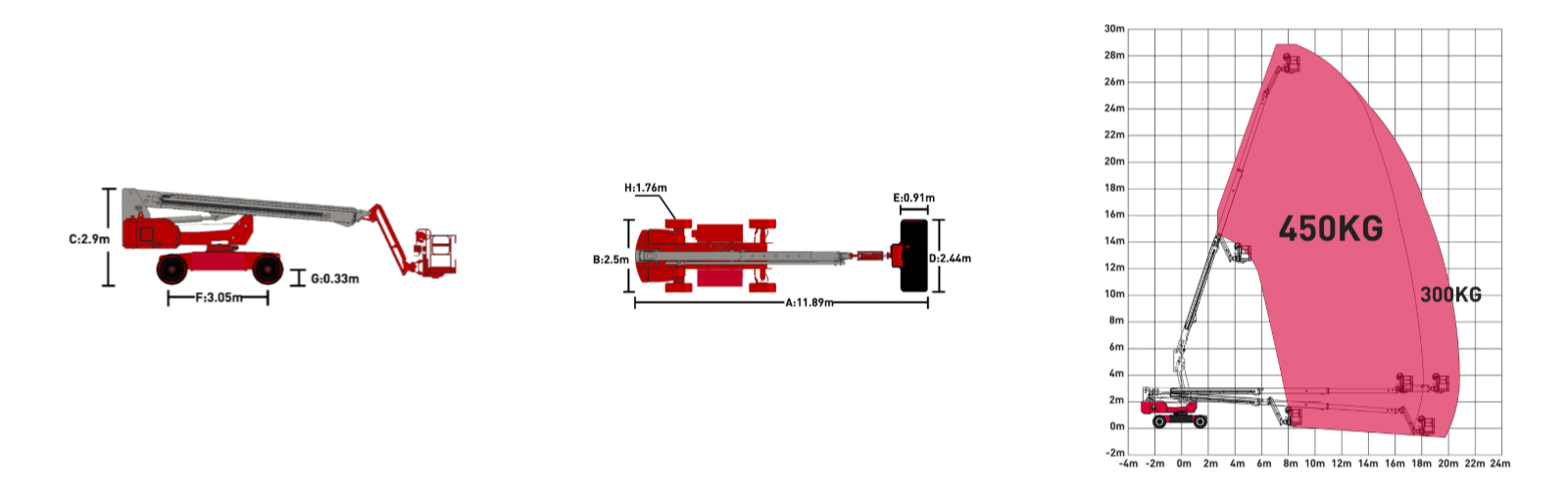

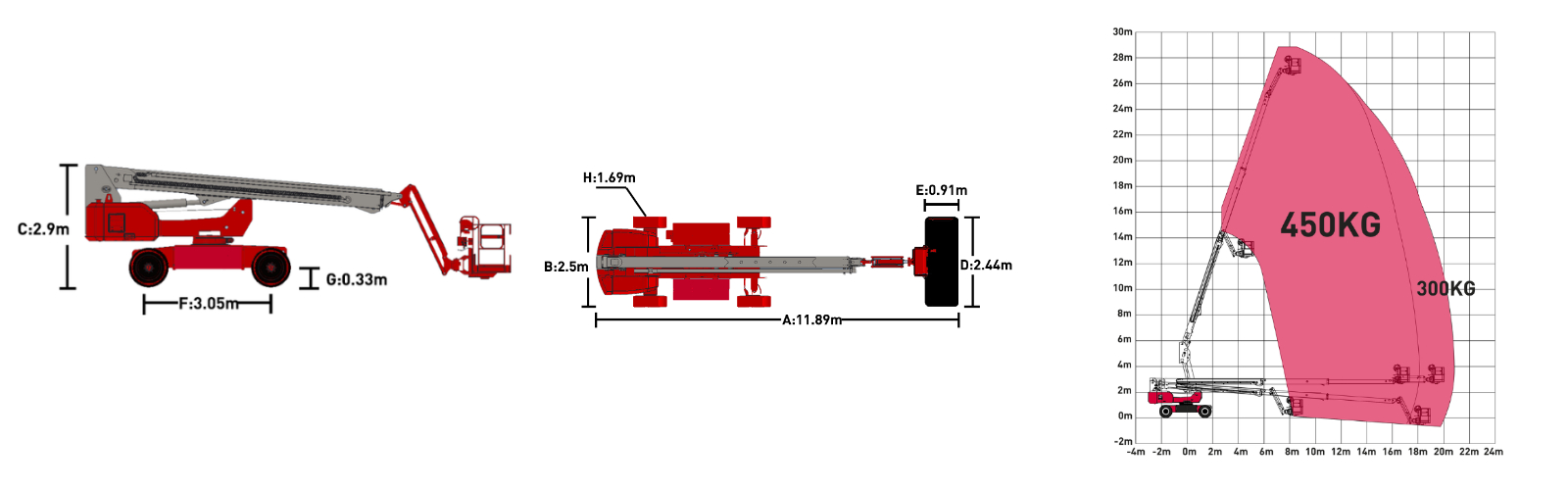

MODELHT27JE
Max.Working Height28.9m
Max. Platform Height26.9m
Max. Horizontal Extension20m
A-Length (Stowed)11.89m
B-Width (Stowed)2.5m
C-Heights (Stowed)2.9m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase3.05m
G- Ground Clearance0.33m
Wheel track2.125m
PERFORMANCE
Platform Capacity450kg/300kg
Max.Drive Speed5km/h&0.8km/h
Gradeability45%
Turning Radius(In.)4.68m
Turning Radius(Out.)6.58m
Turntable Rotation360°Continuous
Platform Rotation±90°
Tilt Rating5°
Operating Wind Speed12.5m/s
Tail Swing1.76m
Hydraulic Tank Capacity140L
Auxiliary power12V DC
Drive Method4WD
Turn MethodFront
Lift Motor24kw
Drive Motor4X5.2kw
POWER
Lithium battery80V/460Ah
Charger100-240VAC/32A
Tires385/65-24
WEIGHT
Weight16490kg
