Diesel Telescopic Boom Lift HT22J

21.8m diesel telescopic boom lift is driven by diesel. Working at heights safely are our priority. These telescopic boom lifts are widely used in ship building and repairing, construction engineering, urban utilities, building maintenance, gardening, airports and harbours, curtain wall engineering, petrochemical industry applications and much more.


While we have a variety of boom lifts(articulating-boom-lift and telescopic-boom-lift ) for sale, we can also provide comprehensive after-sales service, repair and spare parts support.


Platform Capacity

300kg/450kg

Max. Working Height

24m

Inquire Now Pdf Download
FEATURED PRODUCTS

1.Flexible movement, capable of achieving composite boom movements, with a wide range of operations.

2.Four-wheel drive, floating axle design, better passability.

3.Integrated rotary reducer makes rotation smoother,comprehensive protection can adapt to dust environment.

4.High-precision overload sensing system can reduce accidental false alarms and shutdowns.


PRODUCT PARAMETERS

FEATURES Standard

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Tilt Protection System

Self-lock Gate

Oscillating axle

Emergency Descent System

Color Display

Emergency Stop System

Released Type Engine Tray

Anti-extrusion device



Optional

AC Power to the Platform

Air Pipe to the Platform


MODELHT22J

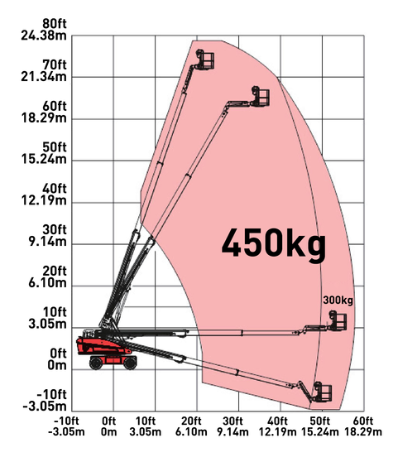

Max.Working Height24m
Max. Platform Height22m
Max. Horizontal Extension17m

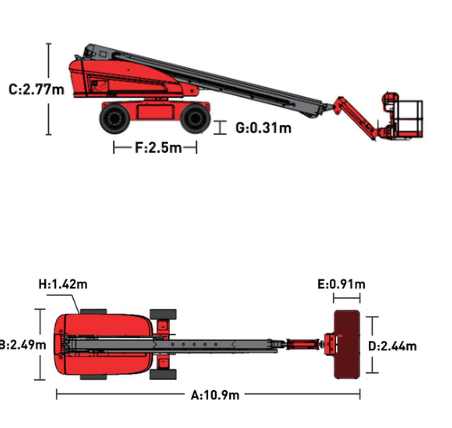

A- Length (Stowed)10.9m
B- Width (Stowed)2.49m
C- Height (Stowed)2.77m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase2.5m
Wheel track2.1m
G- Ground Clearance0.31m
PERFORMANCE
Platform Capacity(unrestricted/restricted)300kg/450kg
Max.Drive Speed (Stowed)4.8km/h
Gradeability45%
Turning Radius(In.)2.9m
Turning Radius(Out.)5.5m
Turntable Rotation360°Continuous
Platform Rotation±90°
Vertical JIB rotation-65°to 72°
Tilt Rating5°
Operating Wind Speed12.5m/s
Tail Swing1.42m
POWER
EngineKubota V2403
Fuel Tank Capacity130L
Control Voltage12V
Hydraulic Tank Capacity170L
Drive MethodFWD
Turn MethodFront
Tires36X14-20
WEIGHT
Weight13100kg
