Electric Scissor Lift HS1212E

Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, 12m electric scissor lifts provide excellent capacity and large platform workspace.

Platform Capacity

320kg

Max. Working Platform Height

13.8m / 45.27 Ft.

PRODUCT HIGHLIGHTS

Flexible and Stable

1. Optimized matching, high cycle times, better endurance.

2. Precise control greatly improves the smoothness of operating.

3. Large ground clearance, stronger passability.


Low Maintenance Cost

1. Universal and modular design, easy maintenance.

2. Swing out trays of batteries and hydraulic system.

3. More durable,stable and safe.



PRODUCT PARAMETERS

Configurations

Standard

Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector, Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn


Optional

Load Sensing System, AC Power to the Platform, Air Pipe to the Platform



Models

HS1212E

Measurements

Max. Working Height

13.8m

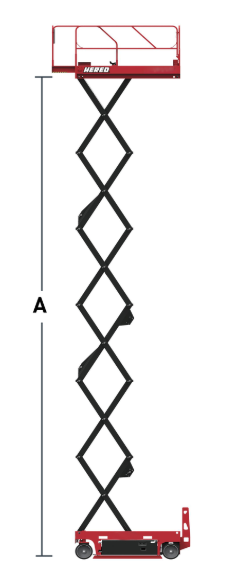

A-Max. Platform Height

11.8m

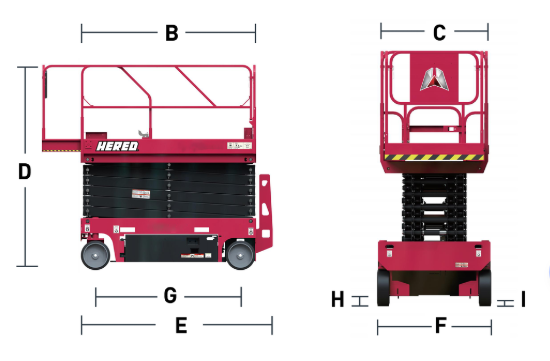

B-Platform Length

2.26m

C-Platform Width

1.12m

Extension Size

0.90m

D-Heights (Rails Up)

2.62m

Height (Rails Down)

2.09m

E-Length (with Ladder)

2.49m

F-Overall Width

1.19m

G-Wheel Base

1.87m

H-Clearance (Stowed)

0.10m

I-Clearance (Raised)

0.02m

Performance

Platform Capacity

320Kg

Extension Capacity

113Kg

Max. Occupancy (Indoor/Outdoor)

2 / 0

Drive Speed (Stowed)

3.5Km/h

Drive Speed (Raised)

0.8Km/h

Turning Radius (In.)

0m

Turning Radius (Out.)

2.3m

Up/Down Time

65/60s

Gradeability

25%

Max. Slope

1.5°/3°

Control

Proportional

Drive

FWD

Multi Disc Brake

Front

Tires (mm)

381x127

Power

Batteries (V/Ah)

4x12/200

Charger

100-240VAC/30A

Weight

Weight

3045Kg
