Electric Telescopic Boom Lift HT22JE

The HERED HT22JE electric telescopic boom lift has a maximum working platform height of 24m and a maximum load capacity of 450 KG. Extendable booms provide industry-leading working heights, empowering you to tackle even the most difficult tasks with ease. Zero emissions and low noise contribute to a cleaner, quieter work environment.

Platform Capacity

450KG

Max. Working Height

24m

PRODUCT HIGHLIGHTS

1. Green environmental protection, low noise, zero emission, maintenance-free high-capacity lithium battery;

2. Industry-leading platform dual load capacity of 300kg/450kg;

3. Accurate and efficient AC drive system, strong power, smooth control;

4. All-electric proportional control, the boom can be compound action, smooth and efficient, the self-weight of the boom down, energy saving and consumption reduction;

5. Man-machine interactive interface and fault self-diagnosis system;

6. Floating bridge design, high passability and off-road ability.

PRODUCT PARAMETERS

Standard configuration:

1. Automatic leveling platform;

2. Horn;

3. Troubleshooting system;

4. Proportional control;

5. Tilt protection system;

6. Motion buzzer;

7. Swing bridge;

8. Operating Strobe Light;

9. Load Sensing System;

10. Platform self-locking door;

11. Color display;

12. Emergency descent system;

13. Emergency stop system;

14. Lithium battery.


Optional configuration:

1. AC power to platform;

2. GPS.



ModelsHT22JE

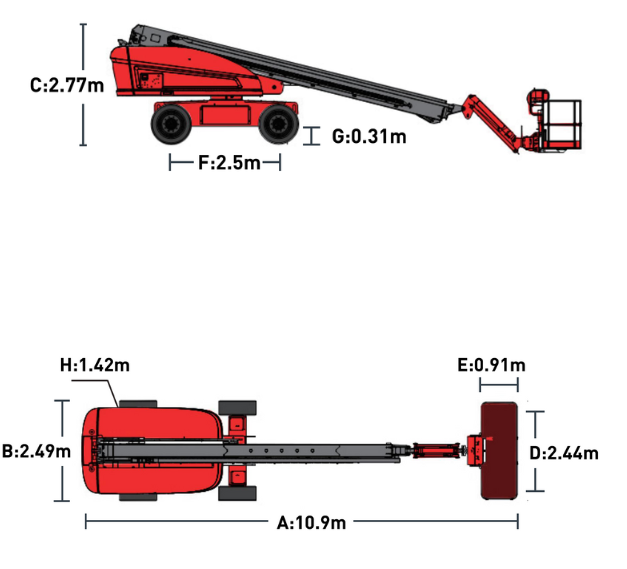

Measurements
Max. Working Height24m
Max. Platform Height22m
Max. Horizontal Extension17m
A- Length (Stowed)10.9m
B- Width (Stowed)2.49m
C- Height (Stowed)2.77m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase2.5m
G- Ground Clearance0.305m
Performance
Platform Capacity (unrestricted/restricted)300kg/450kg
Max.Drive Speed (Stowed)4.8m/h
Max.Gradeability (Stowed)45%
Turning Radius (In.)2.9m
Turning Radius (Out.)5.5m
Turntable Rotation360° Continuous
Platform Rotation160°
Turntable Tailswing1.42m
Tilt Rating
Flying Arm Swing Angle-65°—78°
Operating Wind Speed12.5m/s
Power
①Batteries(V/Ah) / ②Engine①80V460AH
①Charge / ②Power①5KW80V
Tires
Tires355/550 625
Weight
Hydraulic Tank Capacity170L
Weight13000KG
