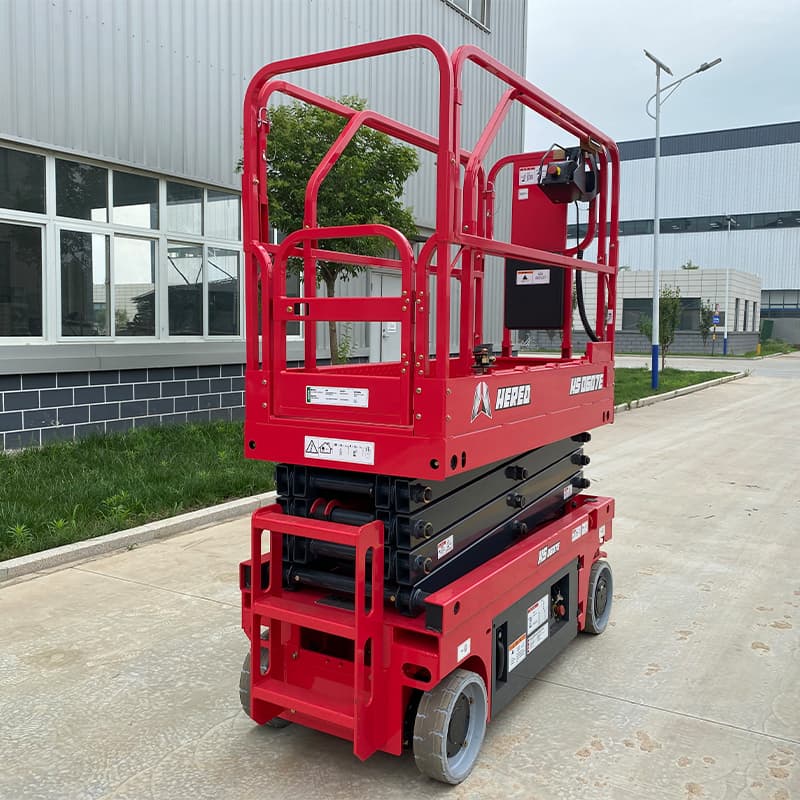

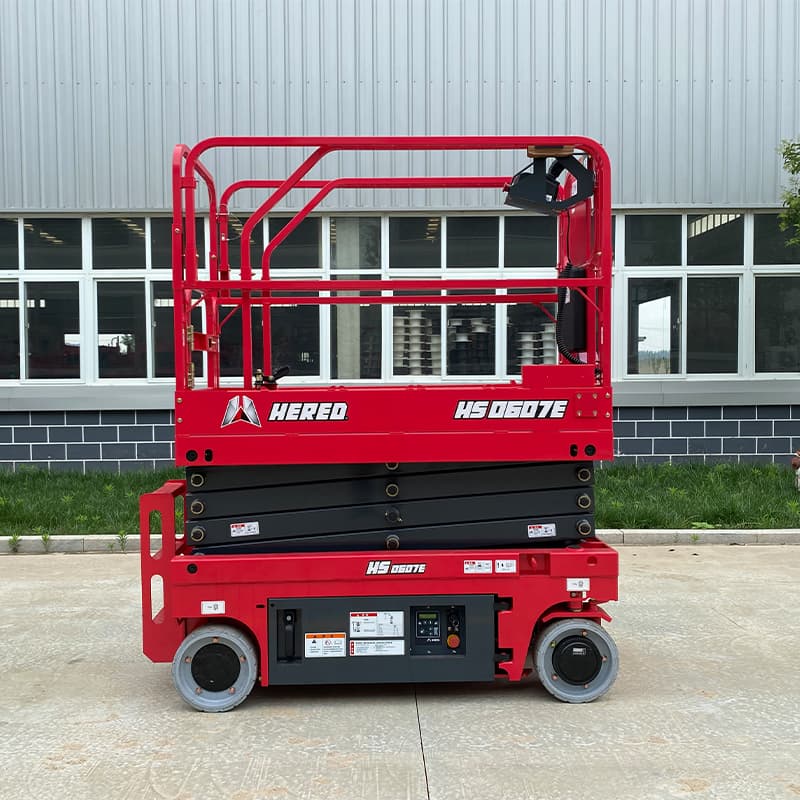

Electric Scissor Lift HS0607E

Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, scissor lifts provide excellent capacity and large platform workspace.


Platform Capacity

230kg

Max. Working Platform Height

7.8m / 25.59 Ft.

PRODUCT HIGHLIGHTS

Flexible and Stable

1. Optimized matching, high cycle times, better endurance.

2. Precise control greatly improves the smoothness of operating.

3. Large ground clearance, stronger passability.


Low Maintenance Cost

1. Universal and modular design, easy maintenance.

2. Swing out trays of batteries and hydraulic system.

3. More durable, stable and safe.


PRODUCT PARAMETERS

Configurations

Standard

Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector, Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn


Optional

Load Sensing System, AC Power to the Platform, Air Pipe to the Platform



Models

HS0607E

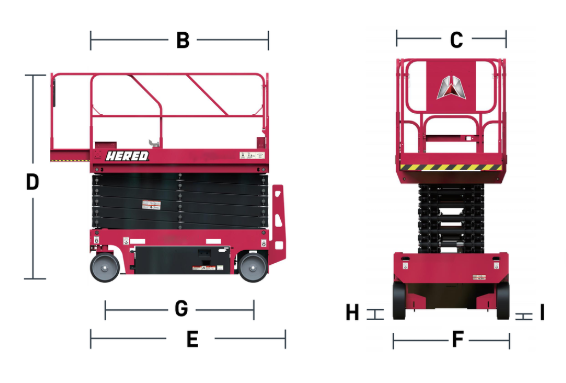

Measurements

Max. Working Height

7.8m

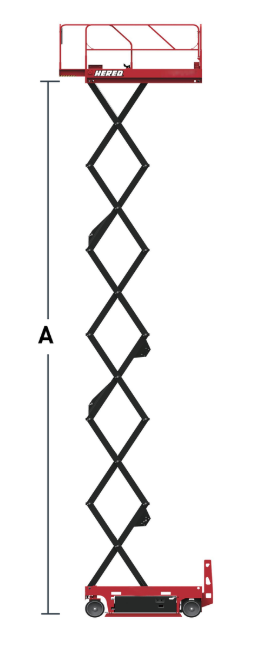

A-Max. Platform Height

5.8m

B-Platform Length

1.63m

C-Platform Width

0.74m

Extension Size

0.9m

D-Heights (Rails Up)

2.17m

Height (Rails Down)

1.83m

E-Length (with Ladder)

1.86m

F-Overall Width

0.76m

G-Wheel Base

1.32m

H-Clearance (Stowed)

0.08m

I-Clearance (Raised)

0.02m

Performance

Platform Capacity

230Kg

Extension Capacity

113Kg

Max. Occupancy (Indoor/Outdoor)

2 / 0

Drive Speed (Stowed)

4Km/h

Drive Speed (Raised)

0.8Km/h

Turning Radius (In.)

0m

Turning Radius (Out.)

1.55m

Up/Down Time

16/34s

Gradeability

25%

Max. Slope

1.5°/3°

Control

Proportional

Drive

FWD

Multi Disc Brake

Front

Tires (mm)

323x100

Power

Batteries (V/Ah)

4x6/200

Charger

100-240VAC/30A

Weight

Weight

1573Kg
