Rough Terrain Scissor Lift HS1218ERT

Rough terrain scissor lifts offer competitive lift speed and large platforms to increase efficiency with the handling and capacity to get to the jobsite and finish working faster. 12m rough terrain scissor lifts are the perfect aerial work platforms for large-scale outdoor operations where platform workspace is critical.


Platform Capacity

360kg

Max. Working Height

14m / 45.93 Ft.

PRODUCT HIGHLIGHTS

1. Drive on all rough terrains.

2. Large ground clearance, stronger passability.

3. AC motor drive, smooth driving, low noise.

4. Large capacity batteries, better endurance.

PRODUCT PARAMETERS

Configurations

Standard

Automatic Braking, Proportional Control, Emergency Descent, Hour Meter, Motion Alarm, Emergency Stop, Extension Platform, Folding Guardrails, Self-diagnosis, Charging Protection, Flashing Beacons, Tilt Sensor, Safety Arm, Platform Self-lock Door, Horn

Optional

Working Lamp on the Platform, Load Sensing System, AC Power to the Platform, Air Pipe to the Platform, Outriggers



Models

HS1218ERT

Measurements

Max. Working Height

14m

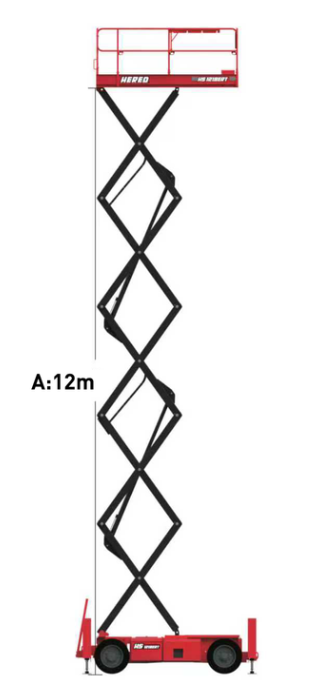

A-Max. Platform Height

12m

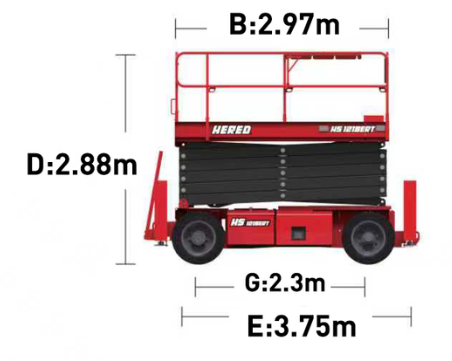

B-Platform Length

2.92m

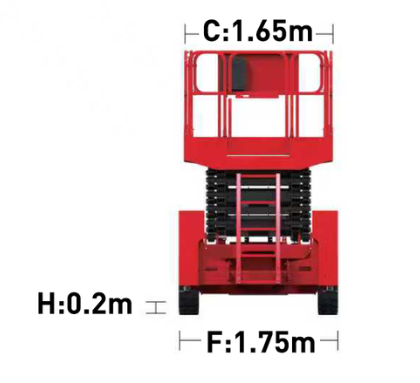

C-Platform Width

1.65m

Extension Size

0.65m(Double side)

D-Overall Heights (Rails Up)

2.88m

Overall Height (Rails Down)

2.10m

E-Overall Length (with Ladder)

3.75m

F-Overall Width

1.75m

G-Wheel Base

2.3m

H-Ground Clearance

0.2m

Productivity

Platform Capacity

360kg

Extension Capacity

113kg

Max. Occupancy (Indoor/Outdoor)

3 / 2

Drive Speed (Stowed)

4.8km/h

Drive Speed (Raised)

0.6km/h

Turning Radius (In.)

2.29m

Turning Radius (Out.)

4.88m

Up/Down Time

54/50s

Gradeability

45%

Max. Slope

2°/3°

Control

Proportional Control

Drive

4WD

Multi Disc Brake

4WD

Max. allowed wind speed

12.5m/s

Tires (mm)

26x12-16

Power

Batteries (V/Ah)

8×6V/370Ah

Charger

100-240VAC/35A

Weight

Weight

5600kg
