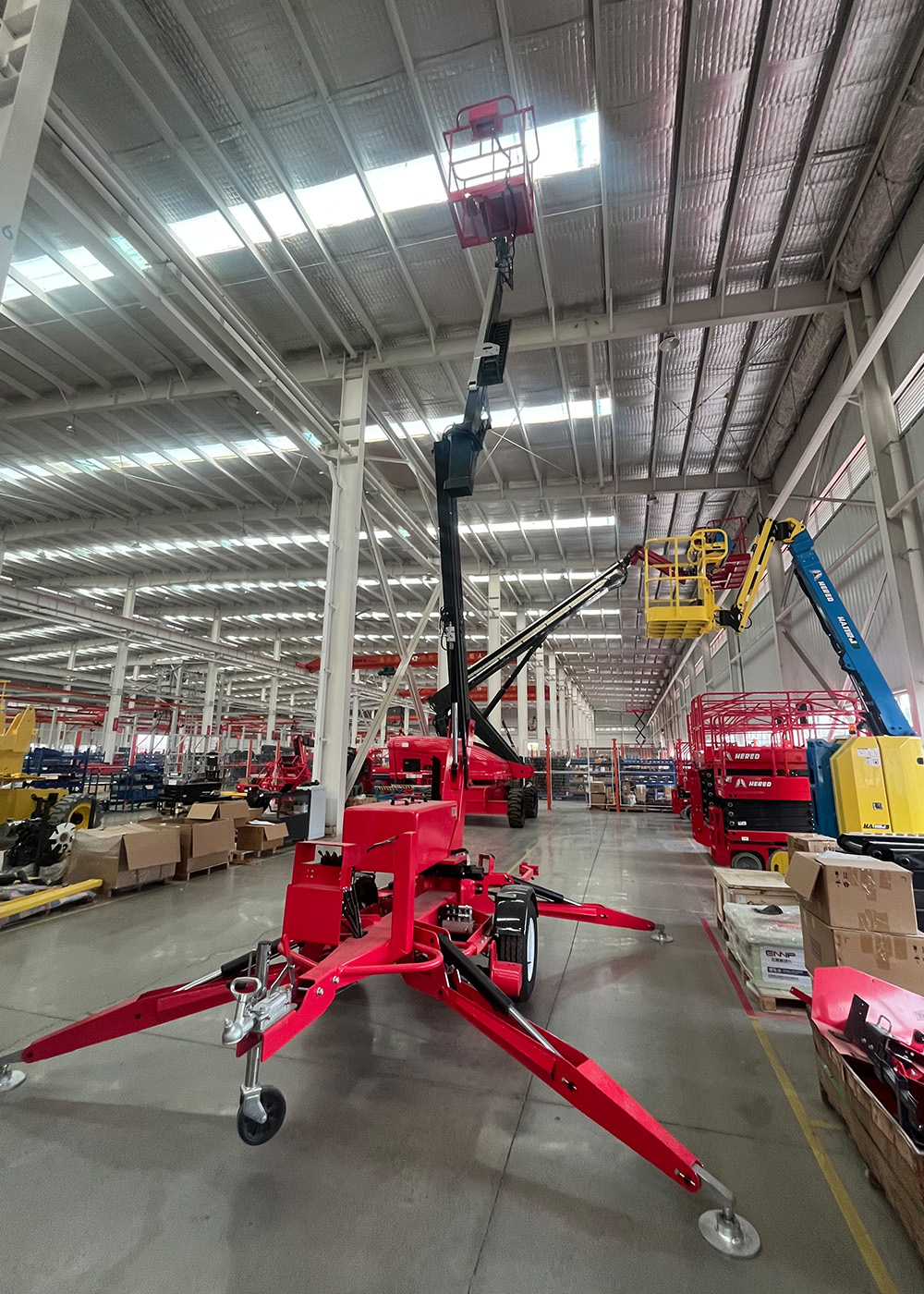

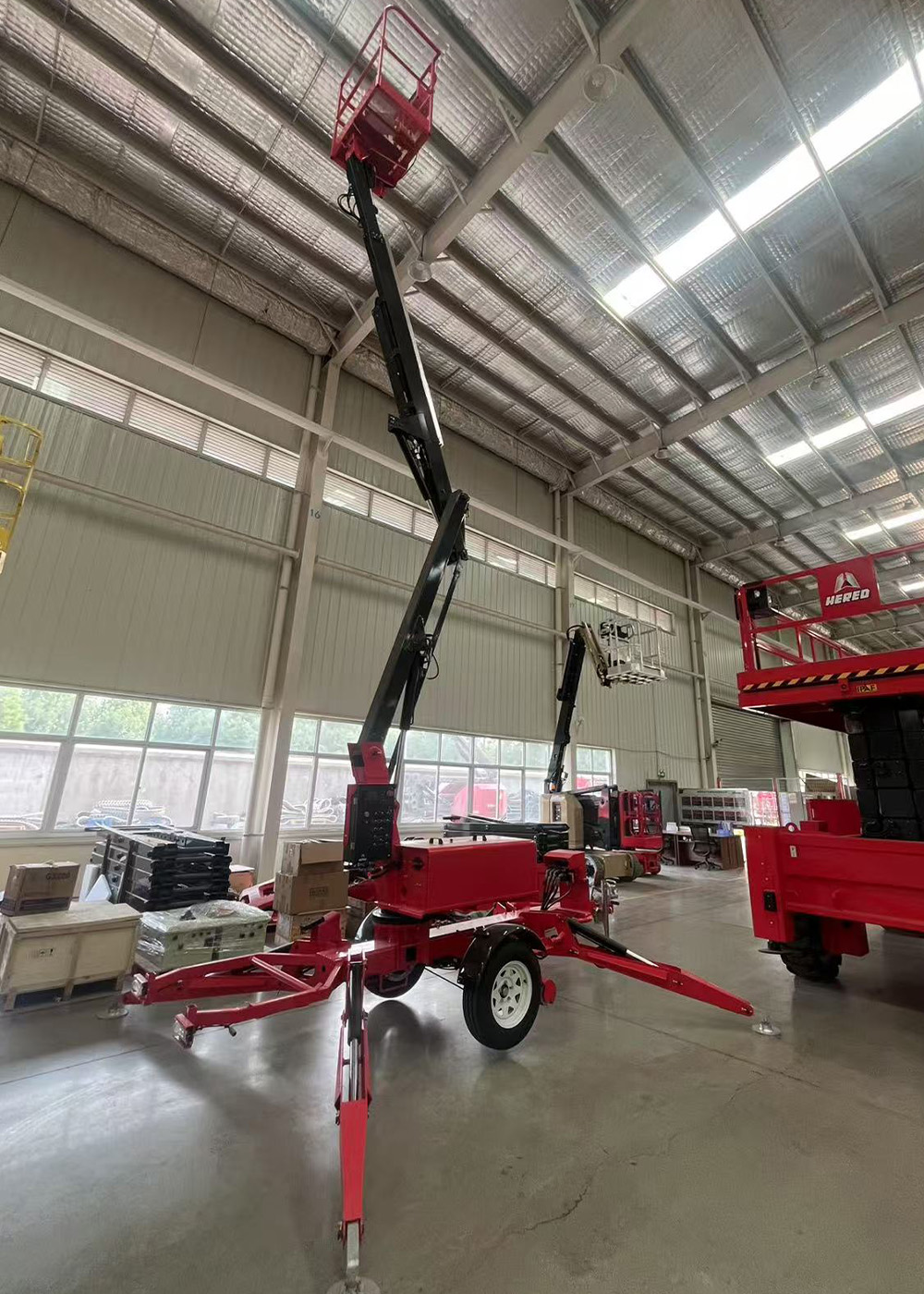

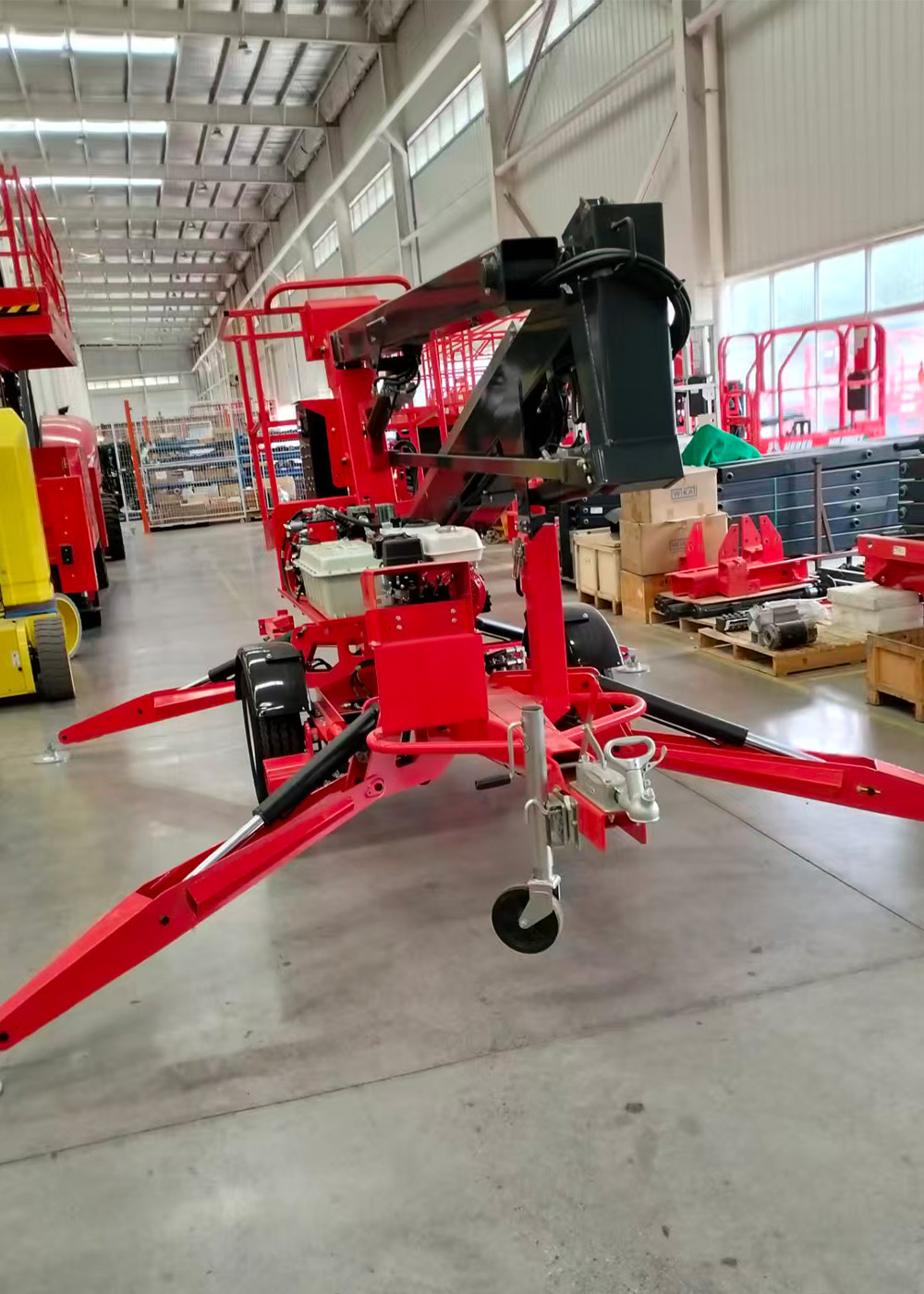

Trailer-mounted Boom Lift SPA11T

Trailer-mounted Boom Lift features a compact design and lightweight construction, significantly enhancing operational efficiency. It can be easily towed to the work area. Hered offers a range of Trailer-mounted Boom Lifts specifically designed to meet diverse customer needs. These towable lifts operate efficiently and can be moved over short distances.

Platform Capacity

230kg

Max. Working Height

12.9m

Inquire Now Pdf Download

FEATURED PRODUCTS

Simple layout, easy maintenance and upkeep.
Environmentally friendly, low noise, zero emissions, maintenance-free large-capacity lithium battery.
Fully electric proportional control, enabling combined movements of the boom;
Smooth and efficient; boom lowering by self-weight, energy-saving and reduced consumption.
Dual guide wheel auxiliary walking device.

PRODUCT PARAMETERS

Configurations Standard

Auto-Leveling Platform	Hydraulic Outriggers
Fault Diagnosis System	Proportional Control
Tilt Protection System	Lithium Battery
Load Sensing System	Emergency Descent System
2.5-Inch Spherical Tow Hook	Motion Alarm
Dual Guide Wheels	Aluminum Alloy Platform
Trailer Support Wheel

MODEL	SPA11T

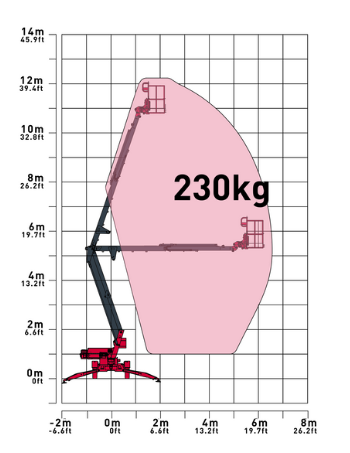

Maximum Working Height	12.9m
Maximum Platform Height	10.9m
Maximum Horizontal Reach	6.33m
Maximum Overreach Height	5.2m

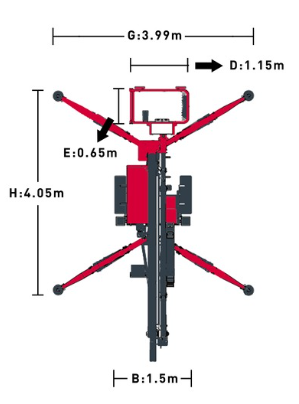

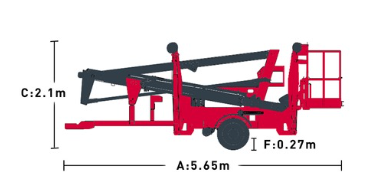

A-Storage Length	5.65m
B-Storage Width	1.5m
C-Storage Height	2.1m
D-Work Platform Length	1.15m
E-Work Platform Width	0.65m
F-Ground Clearance	0.27m
G-Outrigger Spread Width	3.99m
H-Outrigger Spread Width	4.05m
PERFORMANCE
Platform Capacity	230kg
Turntable Rotation Angle	360° discontinuous
Platform Oscillation Angle	±90°
Auxiliary Travel Speed	1.5km/h
Towing Speed	80km/h
Tire Model	175R14
POWER
Battery Capacity	230Ah
WEIGHT
Total Weight	1750kg
