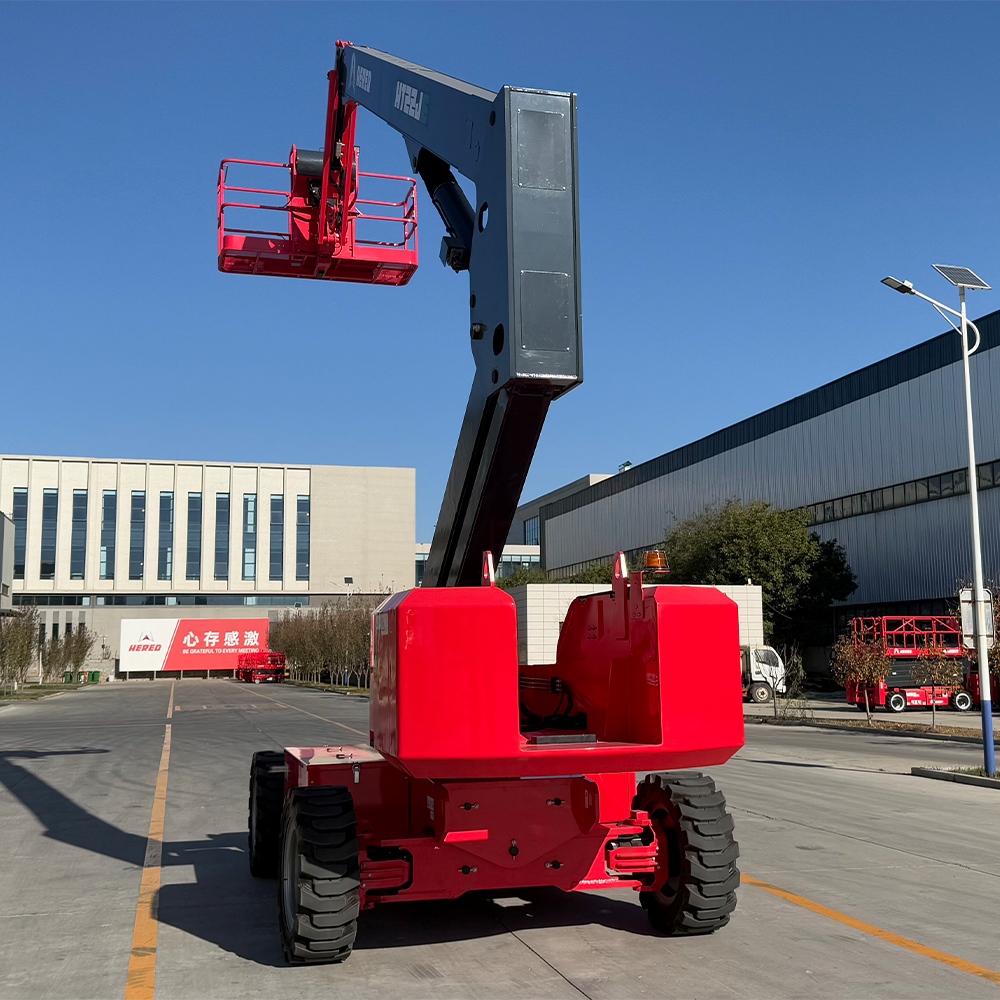

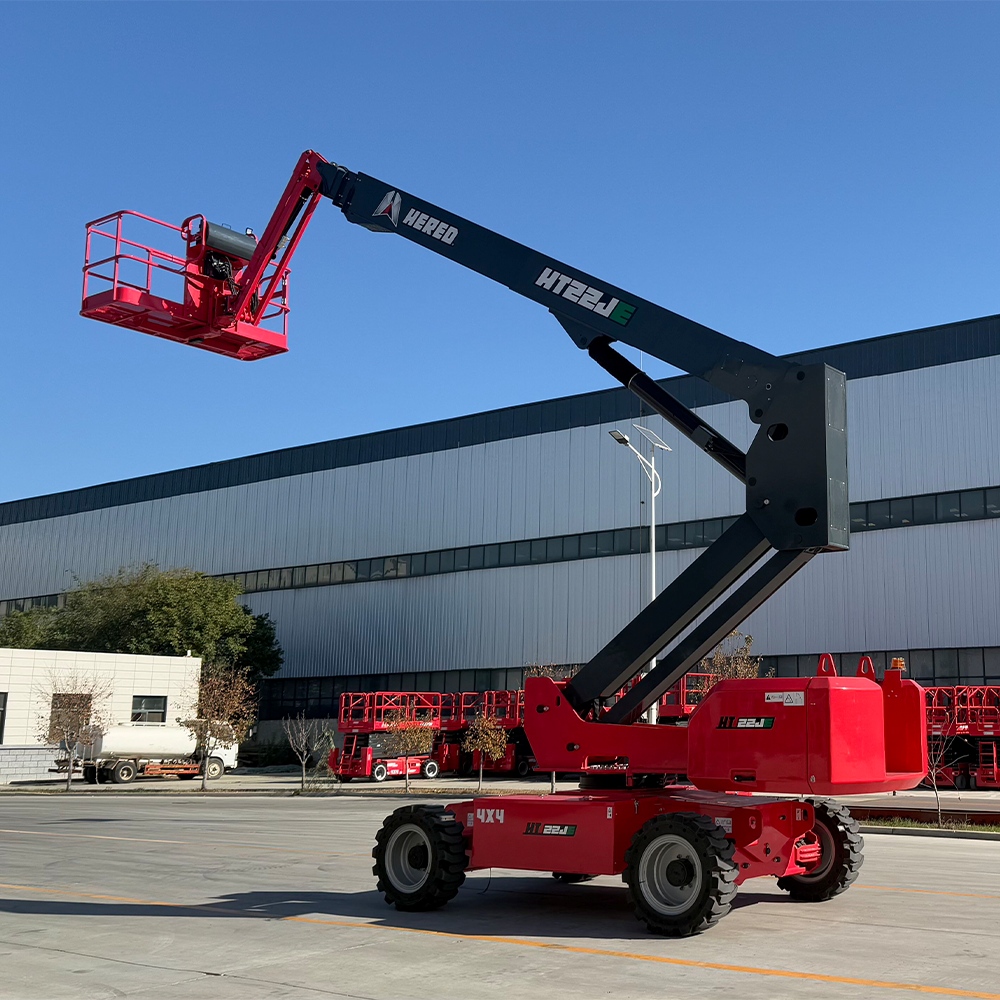

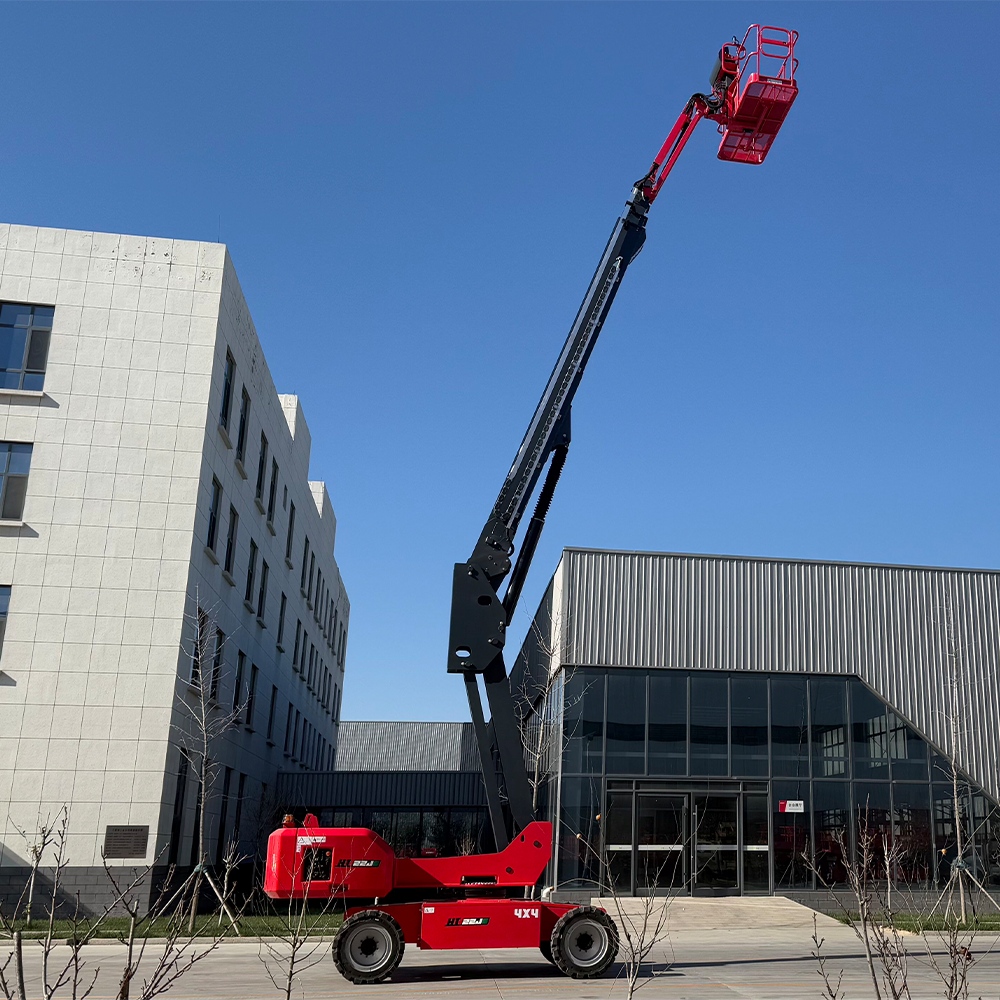

New Model Electric Telescopic Boom Lift HT22JE

The HERED HT22JE electric telescopic boom lift has a maximum working platform height of 22.3 meters and a maximum load capacity of 300kg. Extendable booms provide industry-leading working heights, empowering you to tackle even the most difficult tasks with ease. Zero emissions and low noise contribute to a cleaner, quieter work environment.

Platform Capacity

450kg/300kg

Max. Working Height

24.3m

Inquire Now
FEATURED PRODUCTS

● Environmental friendliness, low noise, zero emission, and maintenance-free large-capacity lithium batteries.

● Precise and efficient AC drive system for strong power and smooth control.

● Smooth and efficient compound boom actions from fully electric proportional control; possible boom lowering with its own weight for energy saving and reduced consumption.

● Human-machine interaction interface and fault self-diagnosis system.

● High gradeability and off-road capability as a result of floating bridge design.


PRODUCT PARAMETERS

FEATURES Standard

---------------

Horn

Automatic Leveling Platform

Proportional Controls

Fault Diagnosis System

Motion Alarm

Overload Sensing System

Flashing Beacons

Tilt Protection System

Self-lock Gate

Oscillating axle

Emergency Descent System

Color Display

Anti-extrusion device

Emergency Stop System


Optional

-------------

AC Power to the Platform

Air Pipe to the Platform

MODELHT22JE

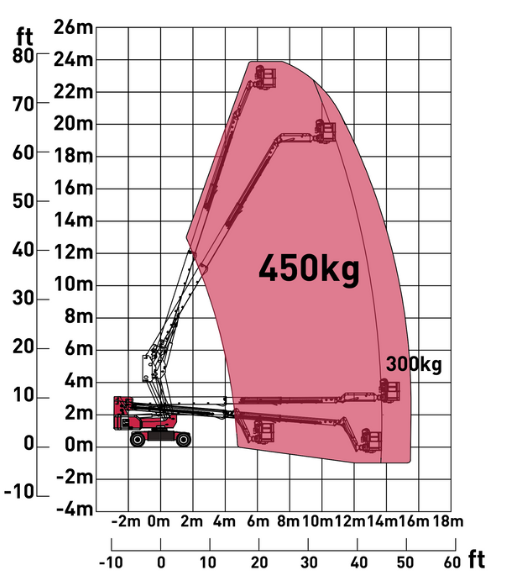

Max.Working Height24.3m
Max. Platform Height22.3m
Max. Horizontal Extension14.8m

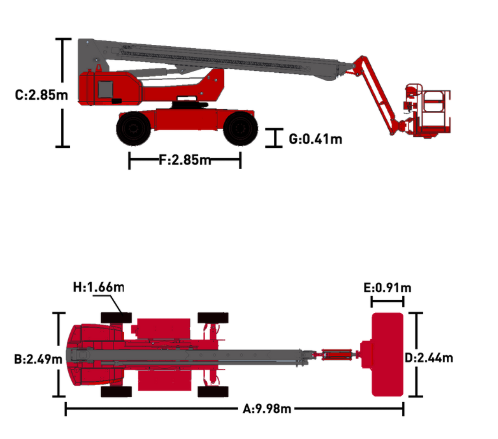

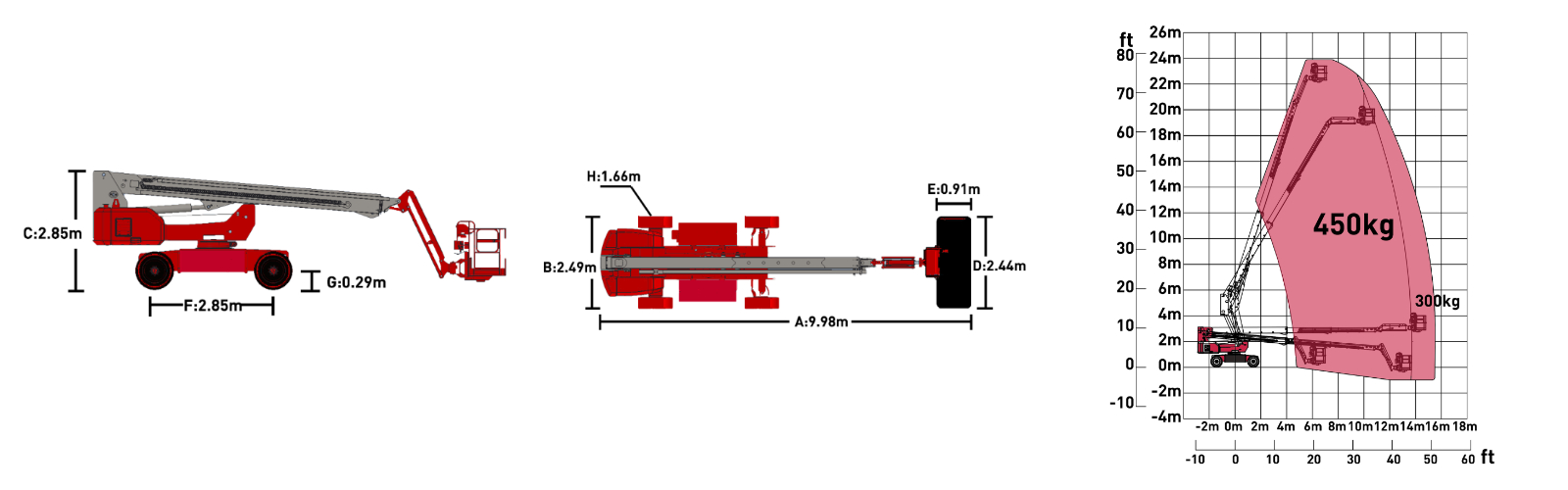

A-Length (Stowed)9.98m
B-Width (Stowed)2.49m
C-Heights (Stowed)2.85m
D- Platform Length2.44m
E- Platform Width0.91m
F- Wheelbase2.85m
G- Ground Clearance0.41m
Wheel track2.17m
PERFORMANCE
Platform Capacity450kg/300kg
Max.Drive Speed4.8km/h&0.6km/h
Gradeability40%
Turning Radius(In.)4.2m
Turning Radius(Out.)6.4m
Turntable Rotation360°Continuous
Platform Rotation±90°
Tilt Rating5°
Operating Wind Speed12.5m/s
Tail Swing1.66m
Hydraulic Tank Capacity140L
Auxiliary power12V DC
Lift Motor48V/24KW
Drive Motor4x5kw
POWER
Batteries(V/Ah)48V/460Ah
Charger100-240VAC/16A
Tires36X14-20
WEIGHT
Weight11750kg
