Electric Scissor Lift HS0507E

Scissor Lift is exceptionally mobile, letting operators easily maneuver around tight indoor and outdoor worksites with firm, level surfaces. Characterized by low noise levels, 6m electric scissor lifts provide excellent capacity and large platform workspace.


Platform Capacity

230kg

Max. Working Platform Height

6.6m / 21.65 Ft.

PRODUCT HIGHLIGHTS

More Efficient

1. Double driving efficiency.

2. Large platform capacity for different working conditions.

3. Multi-disc braking, flexible maneuvering.


Low Maintenance Cost

1. Universal and modular design, easy maintenance.

2. Swing out trays of batteries and hydraulic system.

3. More durable, stable and safe.


PRODUCT PARAMETERS

Configurations

Standard

Folding Guardrails, Emergency Stop, Hour Meter, Flashing Beacon, Self-diagnosis, Extension Platform, Safety Arm, Charging Protection, Proportional Control, Platform Self-lock Door, Pothole Protector, Automatic Braking System, Motion Alarm, Emergency Descent, Full Height Drive, Tilt Sensor, Forklift Hole, Horn


Optional

Load Sensing System, AC Power to the Platform, Air Pipe to the Platform




Models

HS0507WE

Measurements

Max. Working Height

6.6m

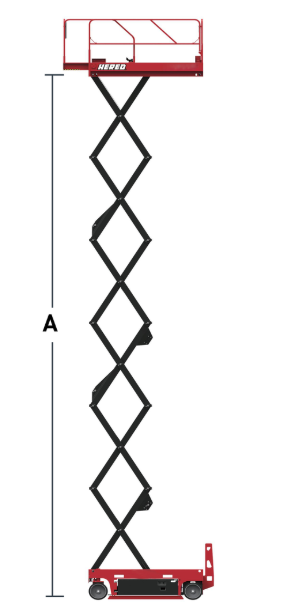

A-Max. Platform Height

4.6m

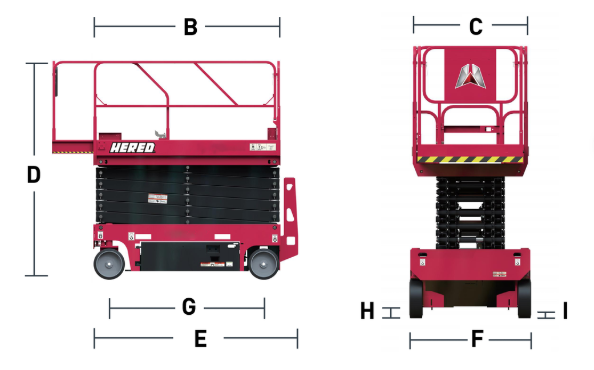

B-Platform Length

1.35m

C-Platform Width

0.7m

Extension Size

0.6m

D-Heights (Rails Up)

2.15m

Height (Rails Down)

1.75m

E-Length (with Ladder)

1.53m

F-Overall Width

0.81m

G-Wheel Base

1.12m

H-Clearance (Stowed)

0.05m

I-Clearance (Raised)

0.02m

Performance

Platform Capacity

230Kg

Extension Capacity

113Kg

Max. Occupancy (Indoor/Outdoor)

2 / 0

Drive Speed (Stowed)

4Km/h

Drive Speed (Raised)

0.5Km/h

Turning Radius (In.)

0.3m

Turning Radius (Out.)

1.5m

Up/Down Time

25/20s

Gradeability

25%

Max. Slope

1.5°/3°

Control

Switching

Drive

RWD

Multi Disc Brake

Rear

Tires (mm)

230x80

Power

Batteries (V/Ah)

2x12/85

Charger

100-240VAC/15A

Weight

Weight

995Kg


Electric Scissor Lift HS0507WE
